Installation & Operation Instructions
Full technical details including requirements and dilution
- Completely self-contained Foam, Rinse, Sanitize system
- Powered by a rechargeable 32 amp hour gel battery and 12V pump (2+ hour run time)
- Applies chemical as wet clinging foam or a fan pattern spray, and rinses
- Combo gun makes it easy to switch between foam and spray nozzles
- The adjustable Bullet Foam Nozzle projects foaming chemical in a fan pattern or narrow stream
- Spray nozzle rinses and/or applies chemical in a fan pattern
- No chemical flows through the pump
- Dilutes chemical concentrate on demand using water from the tank
- Micro-Flow Injector restricts water flow to maximize run time per tank
- Change chemicals by swapping concentrate bottles
- Wide-mouth, fully emptyable, polyethylene water tank
- Unique machined polypropylene suction lids prevent spillage from chemical bottles

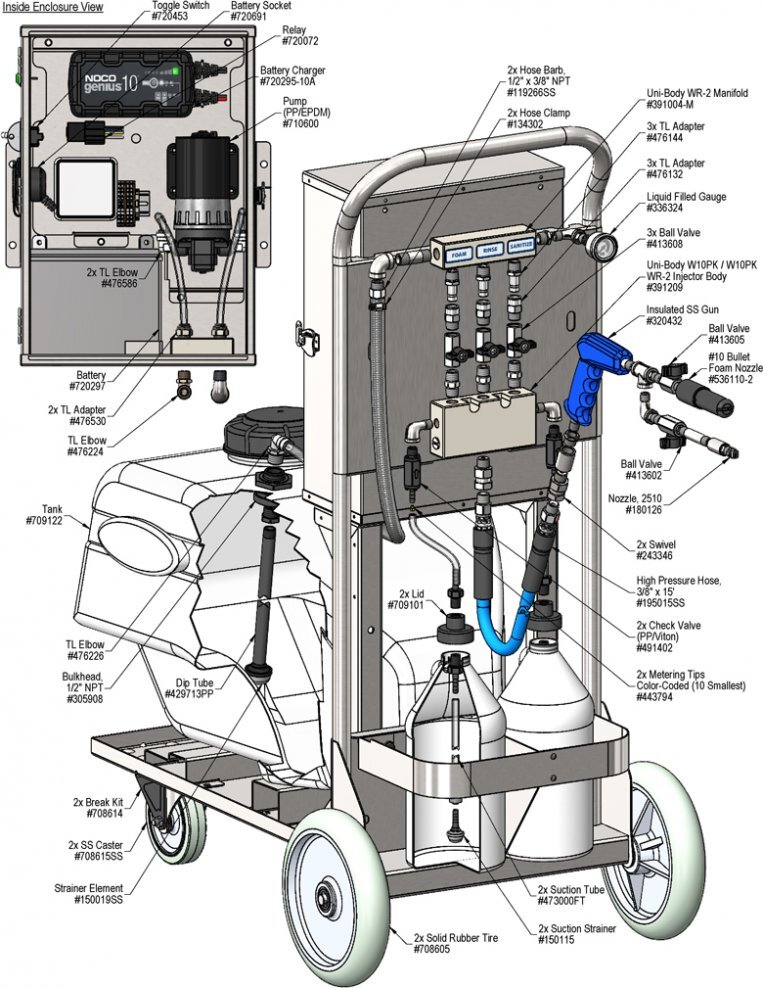

Includes
- All stainless steel 4-wheel cart and pump/battery enclosure
- Non-marking tires with stainless steel swivel casters
- 2 stainless steel jug racks (round jug racks standard, other options available)
- 2 jug lids with suction tube strainers
- 12V pump with battery, battery level indicator, and low voltage disconnect
- Onboard battery charging station
- 20 gallon, wide-mouth, fully emptyable, polyethylene water tank
- Machined polypropylene Micro-Flow Injector Body
- 10 color-coded precision metering tips to set dilution ratios
- 15' heavy duty, high pressure hose, with bend restrictors and swivels, and a foam/spray combo gun
